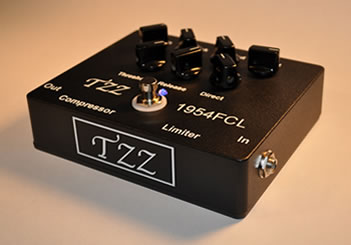

TZZ1954
The TZZ1954FCL differs from
the industry standard by offering a continuously
variable Compression ratio and independent continuously
variable threshold control. Additionally A direct
signal level control is provided to allow blending
of the uncompressed attack transients
For a more natural attack if that is desired.
Attack Time is continuously adjustable
from less than 20microseconds to 800microseconds.
The fast attack time response is independent of
peak frequency content or duration. Over the audio
band the full limiting action will stabilize in
under a half cycle. Release time is continuously
variable from 50msec to 1.1sec. Release time is
defined as the time it takes for the gain to recover
to within 63% of the normal non-limiting gain.
9VDC battery operation
or standard 9V DC power supply.
MAP $299.00
